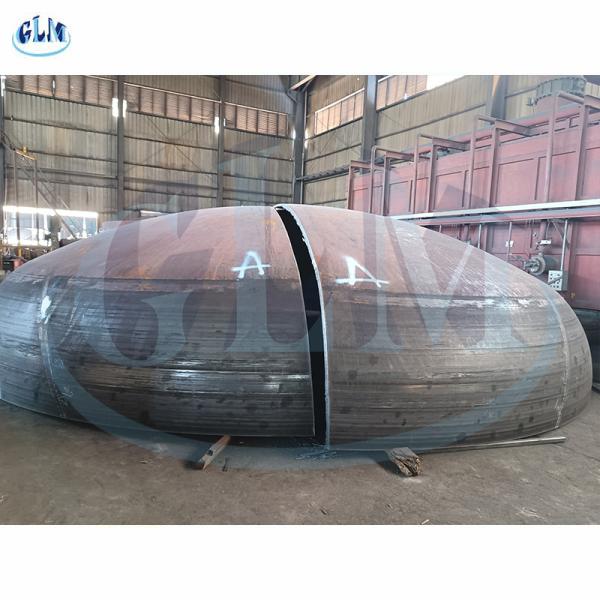

Ellipsoidal Dish Bottom 2:1 ,Large Diameter Elliptical Head For
Boiler And Pressure Vessel
Product Description:
Pressure Vessel Dished Head is a kind of vessel head which is used
for tanks and boilers. It is extensively applied in pressure vessel
manufacturing, and it is manufactured with advanced technology. The
surface treatment of the vessel head includes shot blasting, sand
blasting, painting, etc. The standard is ASME, EN, JIS, etc. The
design pressure is based on customer's needs and the technics is
forged. The vessel head diameter ranges from 200 mm to 10000 mm.
The pressure vessel dished head could be classified into Elliptical
tank heads, Segmented dish Head, Hemispherical Head, and Conical
Head.
Features:
- Product Name: Pressure Vessel Dished Head
- Inspection: Non-Destructive Testing (NDT), Hydrostatic Test, etc.
- Standard: ASME, EN, JIS, etc.
- Package: Wooden Case, Pallet, etc.
- Forming method: Hot Forming, Cold Forming
- Shape: Eccentric Cone, Semi-Elliptical Cap, Vessel Head, Tank Head
Technical Parameters:
| Product Name | Technical Parameter |
|---|
| Pressure Vessel Dished Head | Design Temperature: Based On Customer's Needs
Design Pressure: Based On Customer's Needs
Vessel Head Thickness: 3mm-300mm
Forming method: Hot Forming,cold Forming
Inspection: NDT, Hydrostatic Test, Etc.
Package: Wooden Case, Pallet, Etc.
Surface Treatment: Shot Blasting, Sand Blasting, Painting, Etc.
Standard: ASME, EN, JIS, Etc.
Technics: Forged
Special Features: Dished Bottom, Dish Head, Eccentric Cone,
Hemispherical Head, Torispherical Head, Ellipsoidal Head |
Applications:
Oil & Gas, Chemical & Petrochemical Industries, Offshore, Cryogenic
Industry, Pharmaceutical Industry, Food & Beverage, Water
Treatment, Desalination Plants, Storage & Transport, Pulp & Paper,
Mining, Power Generation, LNG Industry, Nuclear & Aerospace
Industries.
Customization:
Pressure Vessel Dished Head
Brand Name: GLM
Model Number: Cap
Place of Origin: China
Certification: ASMEU, R,U2,PED, ABS, TUV, NB, ISO,
Minimum Order Quantity: 1
Price: $25-125
Packaging Details: Wooden cases, wooden pallet, Steel pallet or as
per customer's requirement
Delivery Time: 10-30
Payment Terms: L/C, Western Union’T/T
Supply Ability: 50000 pieces per Month
Vessel Head Thickness: 3 mm-300 mm
Grade: Carbon Steel, Aluminum, Titanium
Application: Boiler, Heat Exchanger, Power, Etc.
Certificate: ISO9001, PED, Etc.
Inspection: NDT, Hydrostatic Test, Etc.
GLM Cap Pressure Vessel Dished Head is a perfect choice for
elliptical tank heads, torispherical dish head, hemispherical
dished end and other applications. The product has a wide range of
thickness from 3 mm-300 mm and grades of Carbon Steel, Aluminum,
Titanium. The product is certified with ISO9001, PED, etc. and
inspections such as NDT, Hydrostatic Test are available. The
minimum order quantity is 1 and the delivery time is 10–30 days.
The price ranges from $25 to $125.
Support and Services:
We provide technical support and services for Pressure Vessel
Dished Head. Our team of professional engineers is available to
provide consultation on your project and answer any questions you
may have. We also offer installation and maintenance services to
ensure optimal performance of your equipment.
We provide 24/7 emergency support to minimize any downtime. If you
experience any issues, we will work quickly and diligently to
rectify them. Our team is committed to providing the best customer
service and satisfaction.
We are committed to helping you get the most out of your Pressure
Vessel Dished Head. Our knowledgeable staff is available to help
you choose the right equipment for your application and provide
technical support and service throughout its life cycle.
